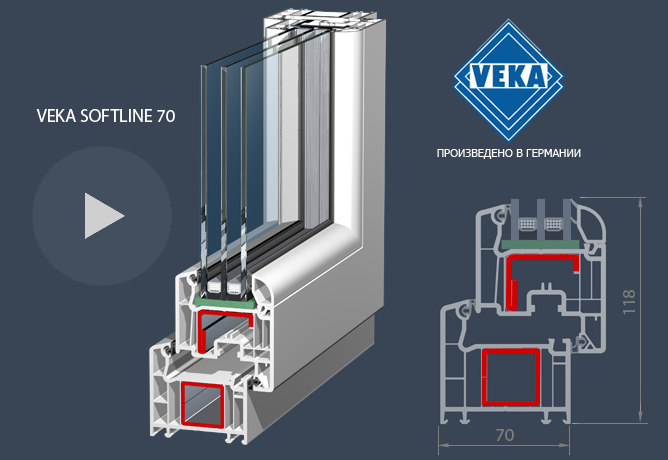

Classical system of five-chambered profiles VEKA SOFTLINE 70 with excellent
Isolating characteristics and attractive, expressive design.
Technical characteristics of the profile system VEKA SOFTLINE 70
|
|
• The mounting width of the profiles is 70 mm.
• Number of cameras - 5.
• Possibility of installation of double-glazed windows with thickness from îò 24 äî 42 ìì.
• The heat conductivity index Uf =1.28 Âò/ì2Ê ïî DIN EN12412-2, that corresponds
to the coefficient of heat transfer 0,78 ì2 Ñ/Âò.
• Color of gaskets: black, gray, caramel.
• The width of the frame-frame combination in the light opening is -118 ìì.
|
|
|
|
|
|
VEKA SOFTLINE
82
|
|
|

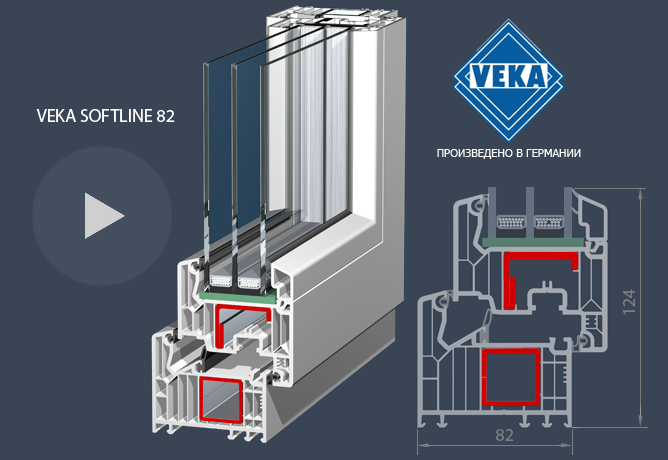

Profile system VEKA SOFTLINE 82 - innovative development allows
to design and produce windows that meet the requirements of tomorrow.
Technical characteristics of the profile system VEKA SOFTLINE 82
|
|
• The mounting width of the profiles is 82 mm.
• The number of cameras is 7.
• The possibility of installing a double-glazed window with a thickness of îò 24 äî 52 ìì.
• Excellent thermal insulation performance.
Resistance to heat transfer
(With reinforcement installed) 1.0 ì2 Ñ/Âò.
• Three-circuit sealing system for improved sound insulation, greater
greater tightness and more efficient thermal insulation
• Color of gaskets: black, gray, caramel.
• The width of the frame-frame combination in the light opening is -124 ìì.
|
|
|
|
|
|
|

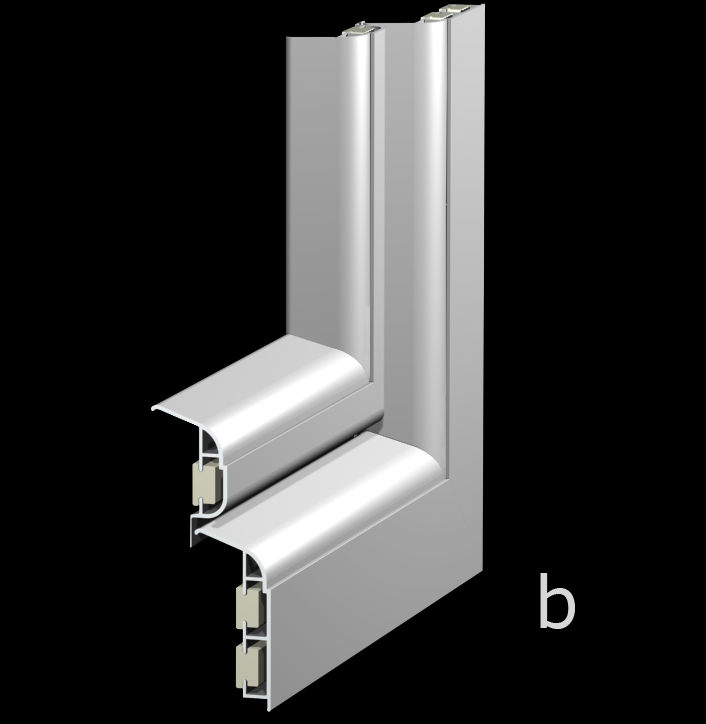

VEKA SOFTLINE/ALU
Arguments in favor of VEKA SOFTLINE/ALU windows

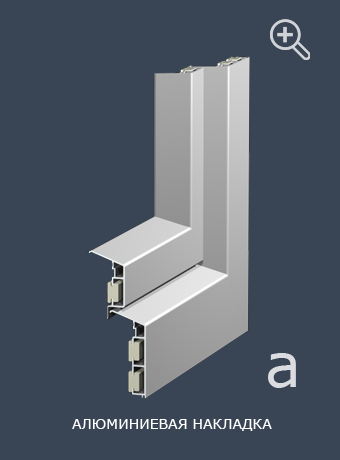

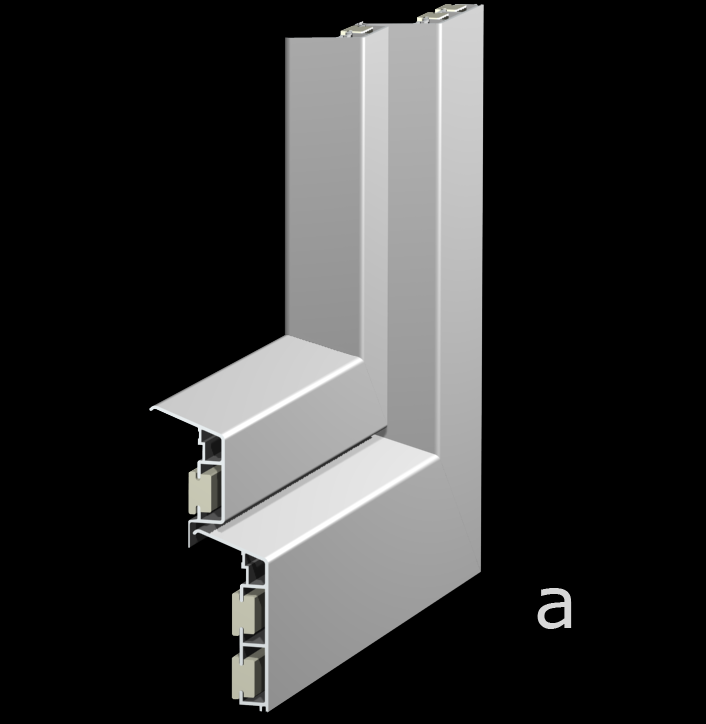

1. Various options for the shape of the outer ALUMINUM LINING. è èõ Wide range of colors – more than 170 shades in the RAL catalog, ëèáî Decorating for a tree allows you to implement any design Ideas on the facade of the building
2. Improved thermal insulation and noise protection due to additional profile chambers.
3. Increased strength profiles, which raises the upper limit of the limit The sizes of window designs.
4. The possibility of making a design of any shape, including arched.
5. Ability to mount aluminum overlays on the object on a previous installed windows.
|
|
|
|
|
|
|
|

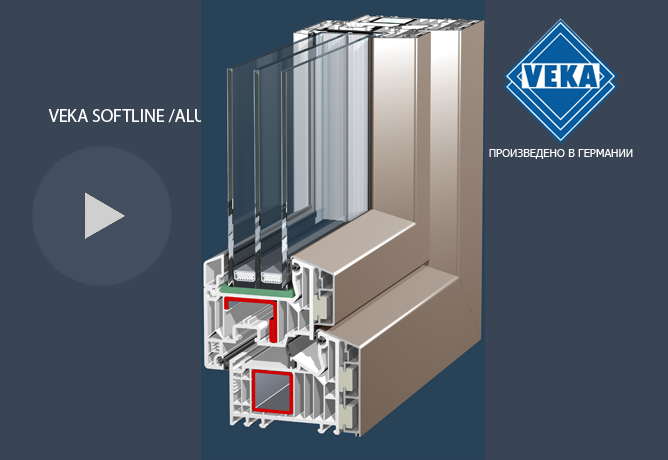

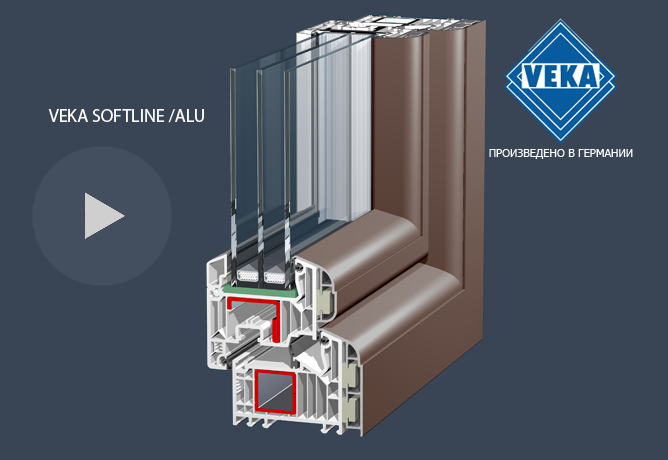

VEKA SOFTLINE/ALU
Innovative profile system VEKA SOFTLINE/ALU Combines the best properties of three materials: ability to maintain heat in PLASTIC, The strength of STEEL and the boundless possibilities of ALUMINUM in the implementation of the shape and color of the window profiles.

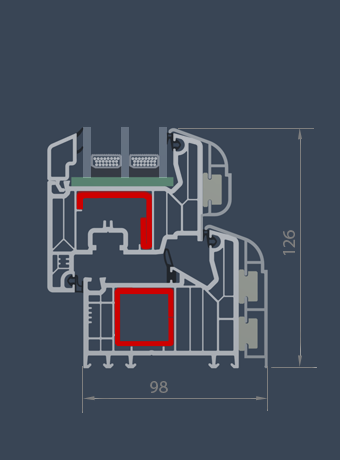

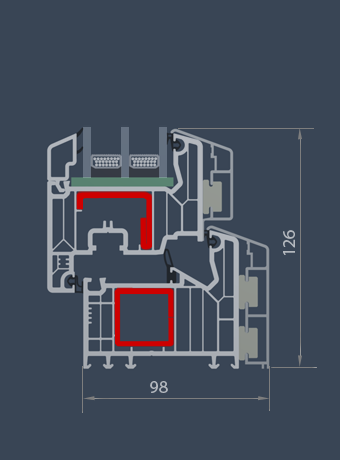

Technical characteristics of the profile system VEKA SOFTLINE/ALU
• The mounting width of profiles is 98 ìì.
• The number of cameras is – 9.
• The possibility of installing a double-glazed window with a thickness of 24 äî 52 ìì.
• Âåëèêîëåïíûå òåïëîèçîëÿöèîííûå ïîêàçàòåëè.
• Excellent thermal insulation performance. Resistance to heat transfer Ro more 1,0 ì2 Ñ/Âò.
• Three-circuit sealing system for improved sound insulation, greater
tightness and more effective thermal insulation.
• Color of gaskets: black, gray, caramel.
• The width of the frame-frame combination in the light opening is – 126ìì.
|
|
|
 |
|
SAMPLES PAINTING UNDER WOODaluminum lining
(increase is working)
|
|
|
