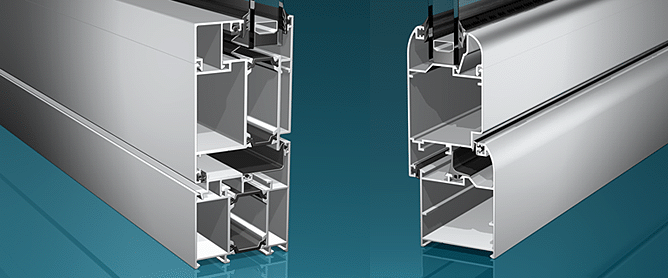

Experts know that a unique material for the production of windows - aluminum, has long proved its advantages, the test of time and does not need any special recommendations. Numerous aluminum profile systems of leading manufacturers in the world is constantly evolving and constantly being improved by opening up new areas of application in architectural design and construction.
       "House windows Morimoto & Co." is known for having engaged in manufacturing of translucent aluminum structures of any degree of complexity and the highest quality criteria demanding customers. One of the components of success is the use of an integrated approach in the choice of a particular aluminum profile systems for the implementation of each project.
        In this case, one thing remains unchanged - only work with manufacturers of high-quality systems. Our regular partners - the best European manufacturers of aluminum systems for the modern architectural construction. This is a German company: SCHUCO, HUECK, BUG-ALUTECHNIK, GUTMAN; Greek firms: ALUMIL, PROFILKO, ETEM; Polish companies: ALUPROF, YAWAL, a Swedish company SAPA, as well as manufacturers of special polyamide insulating profiles - German firms: TECHNOFORM-BAUTEC and THERMIX .

PAINTING

        Interactive Table 1.


SPECIFICATIONS          OPTIMA-90

The thickness of the profiles WOODAL-PH

82 - 96 мм

The thickness of the glass

48 - 58 мм

Recommended formula glass

4+20Ar+4i+16Ar+4i

Warm spacer frame

TGI-Spacer, 0.051 W/m²K

Thermal resistance of glazing, R_og

1.27 m²°C/W

Thermal resistance of the system R_of

0.76 m²°C/W

Thermal resistance of a window with an area of 2m² , according with EN ISO 10077-2:2003-12, R_ow

1.15 m²°C/W

Soundproofing

34 Дб

The thermal conductivity of polyamide thermal bridge
Technoform Bautec

0.300 W/mK

The number of options to the external shape
of aluminum profiles

6 options

Number of variants of internal shape
of wooden profiles

6 options

Colors from the outside

Any color RAL or painting under a tree

    Interactive Table 2.

SPECIFICATIONS          OPTIMA-100

The thickness of the profiles WOODAL-PH

87 - 100 мм

The thickness of the glass

53 - 63 мм

Recommended formula glass

4i+20Ar+4i+20Ar+4i

Warm spacer frame

TGI-Spacer, 0.051 W/m²K

Thermal resistance of glazing, R_og

1.32 m²°C/W

Thermal resistance of the system
системы, R_of

0.81 m²°C/W

Thermal resistance of a window with an area of 2m² , в соответствии с EN ISO 10077-2:2003-12, R_ow

1.26 m²°C/W

Soundproofing

34 Дб

The thermal conductivity of polyamide
thermal bridge

0.300 W/mK

The number of options to the external shape
of aluminum profiles

6 options

Number of variants of internal shape
of wooden profiles

6 options

Colors from the outside

Any color RAL or painting under a tree

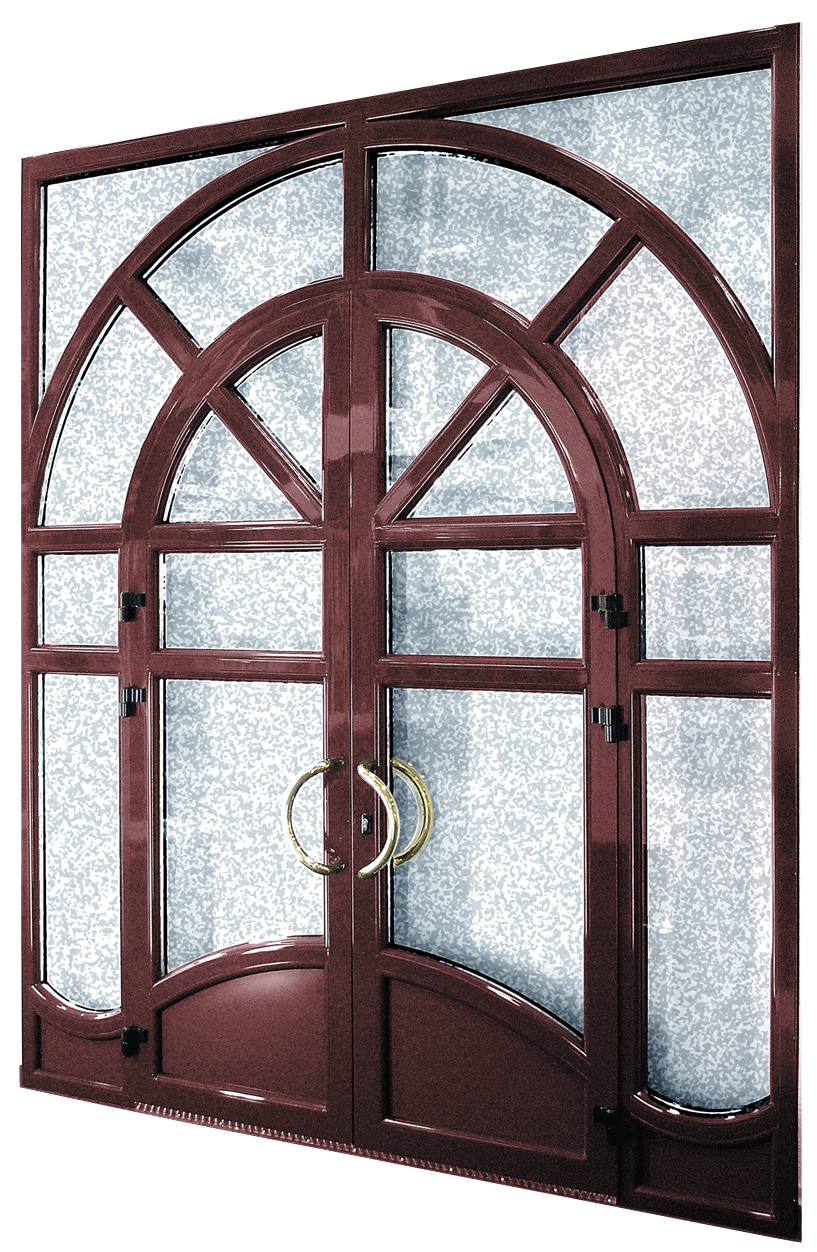

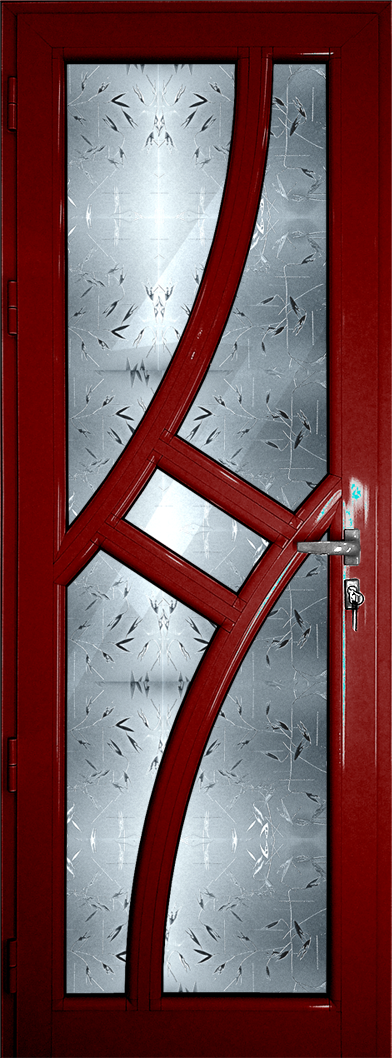

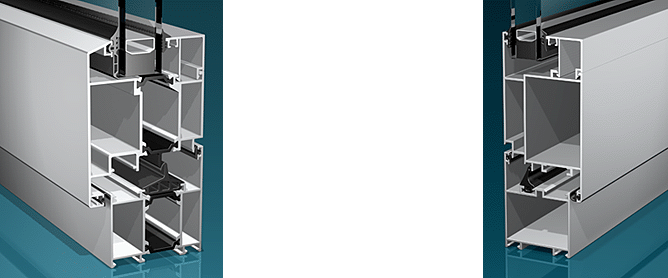

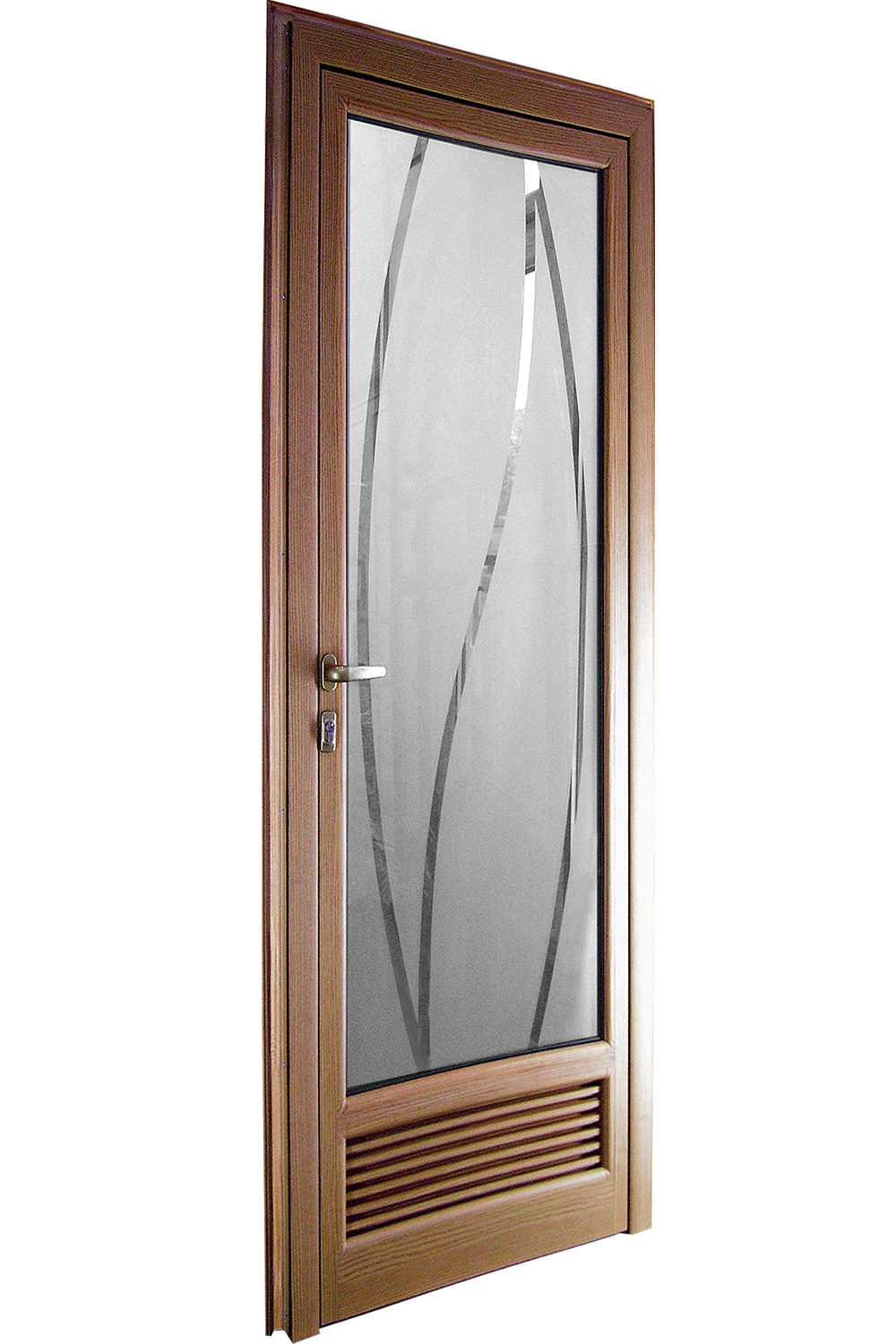

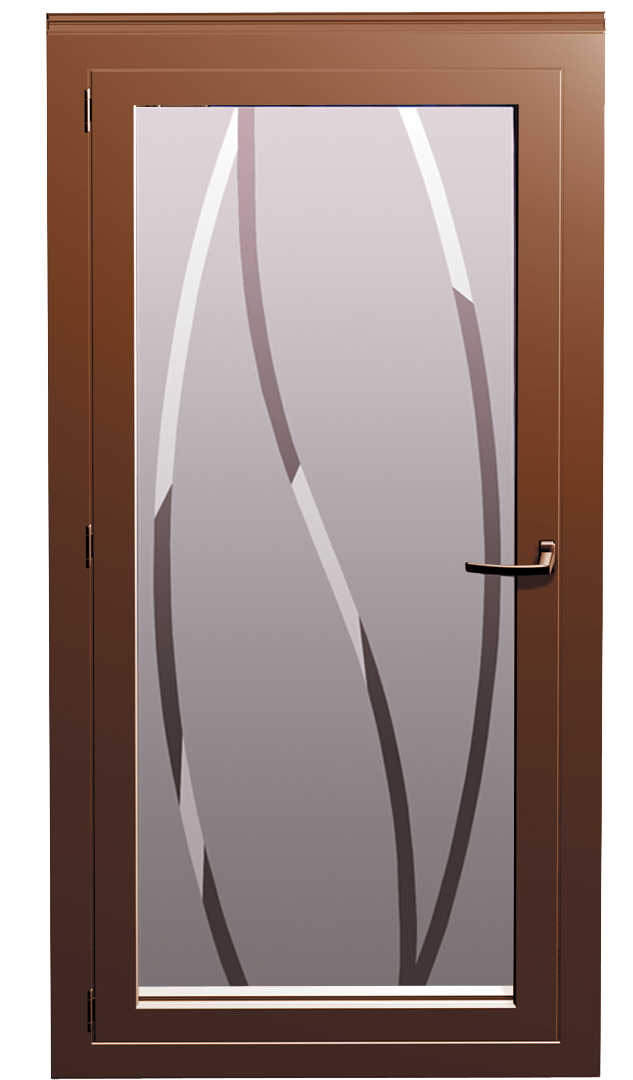

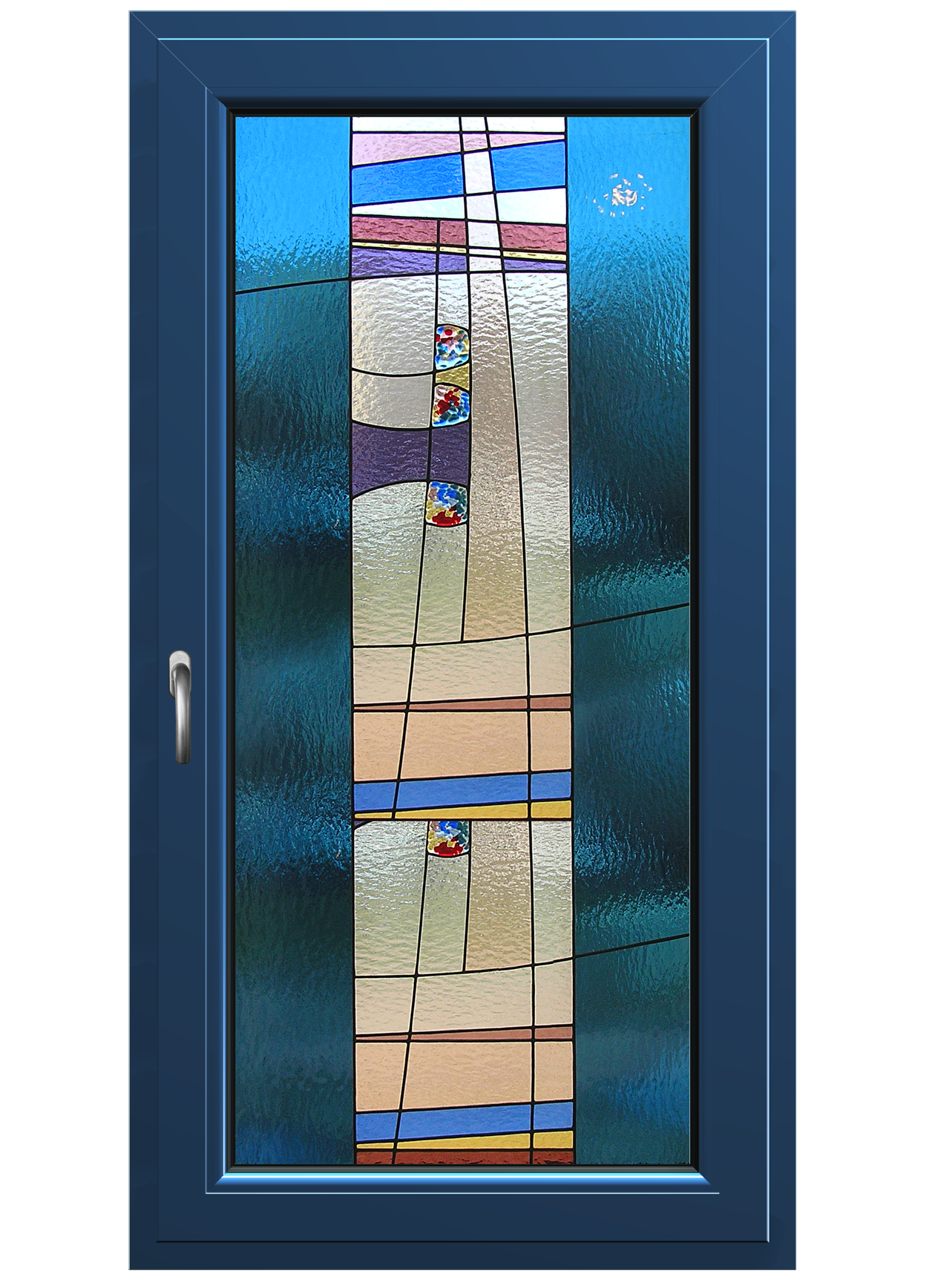

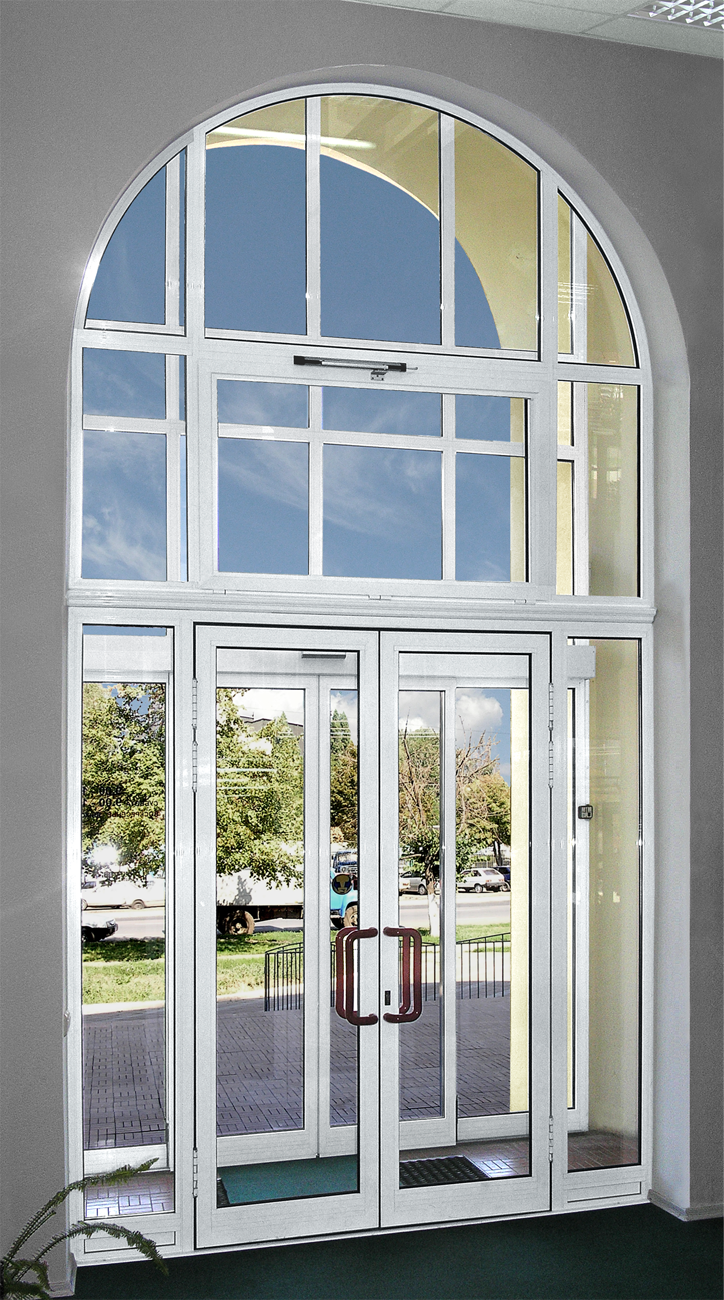

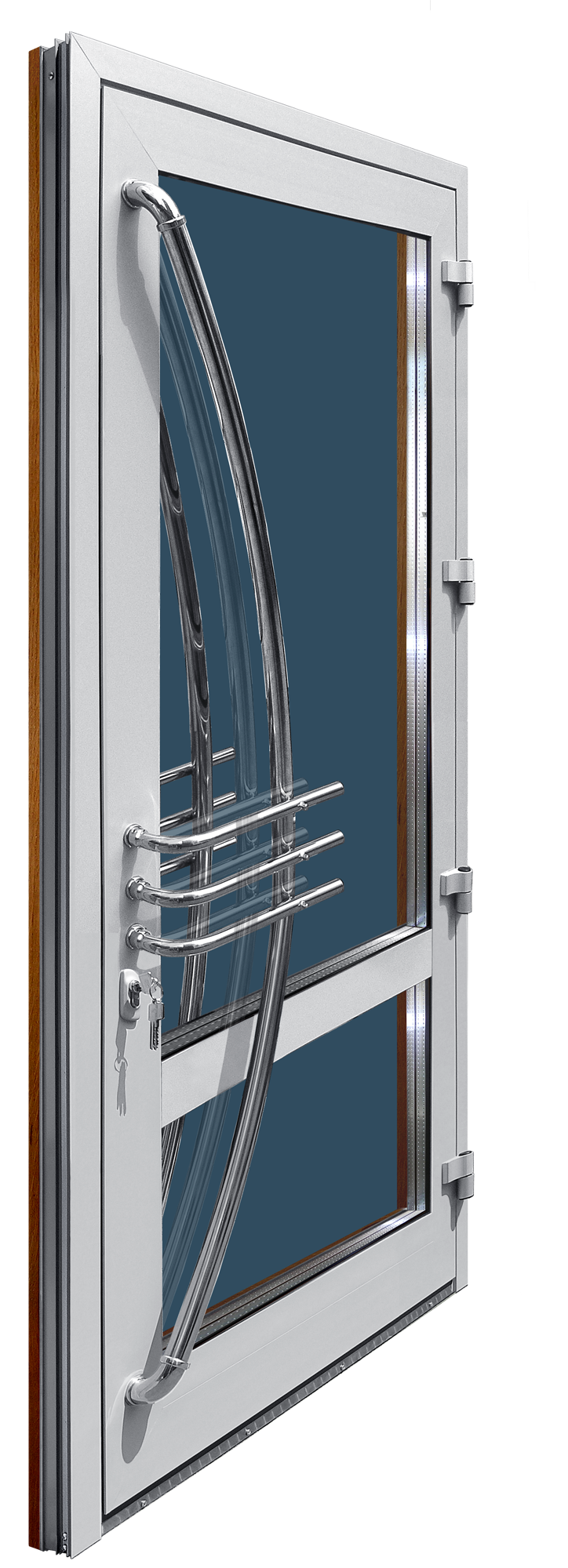

TYPES  OF  ALUMINIUM  DOOR

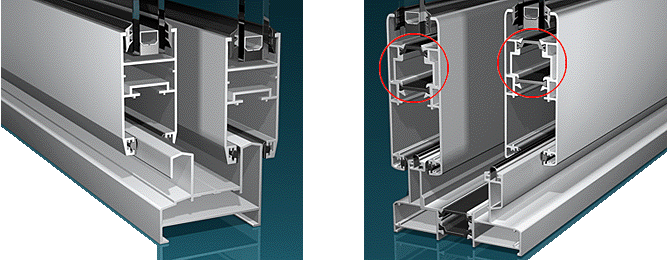

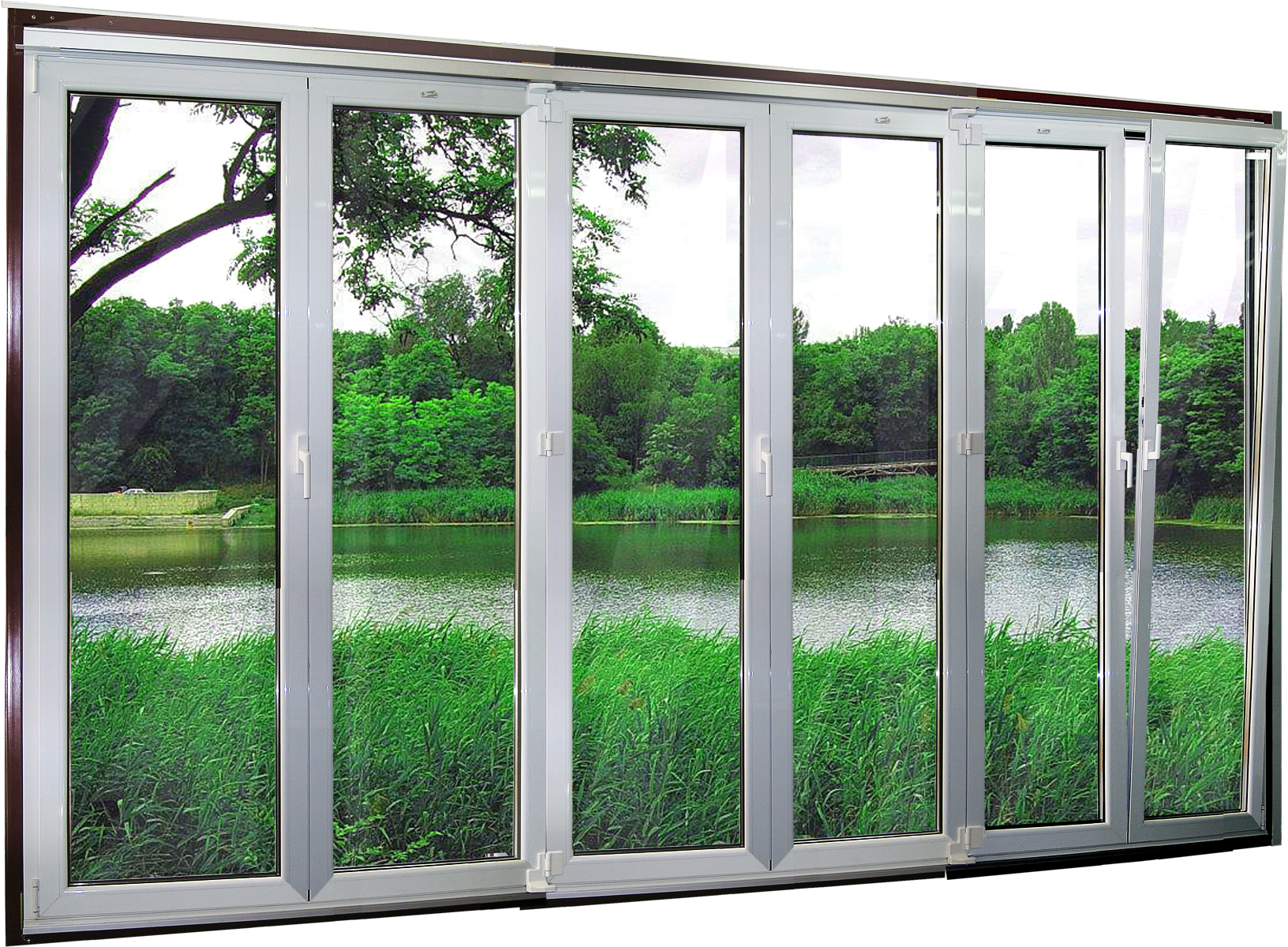

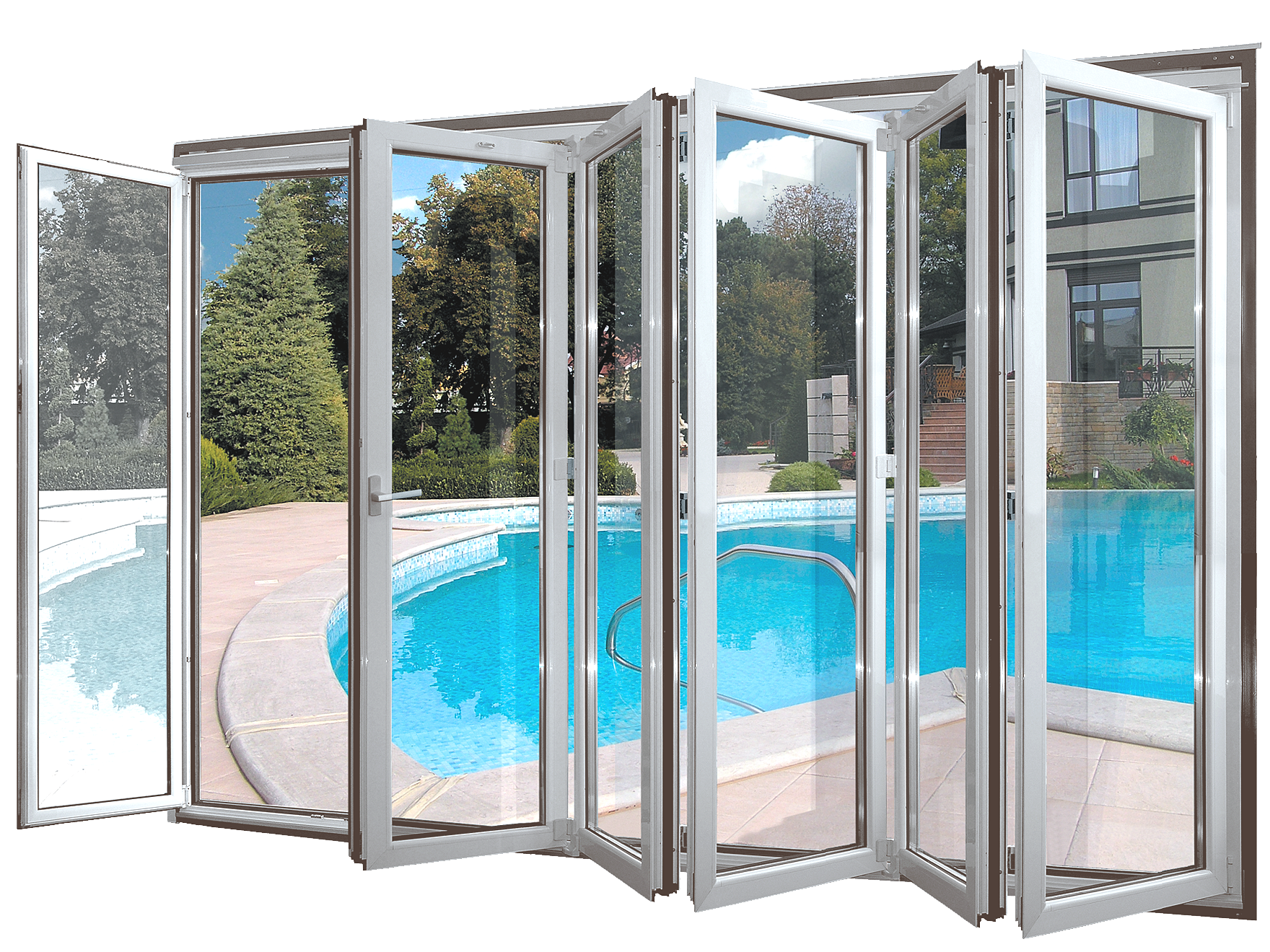

SLIDE  SYSTEM
