TYPES  OF  PROFILES
WOODAL - PH

     The new generation of the profile system WOODAL-PH has increased thermal insulation properties and the ability to install triple-glazed windows up to 80 mm thick. The abbreviation PH (Passive House) implies the use of WOODAL-PH windows in the design and construction of so-called "passive" and low-energy houses.  (TABLE 4.).  The technical specifications of this subsystem are presented in     (TABLE 5.).
     The variety of design solutions in form of outdoor and internal parts and extensive technical capabilities allow us to produce Windows for any architectural style of home from classic to modern.

    Interactive table 4.

INNOVATIVE   PROFILE   SYSTEM  WOODAL-PH

WITH POWERFUL   THERMAL INSULATING   PROPERTIES

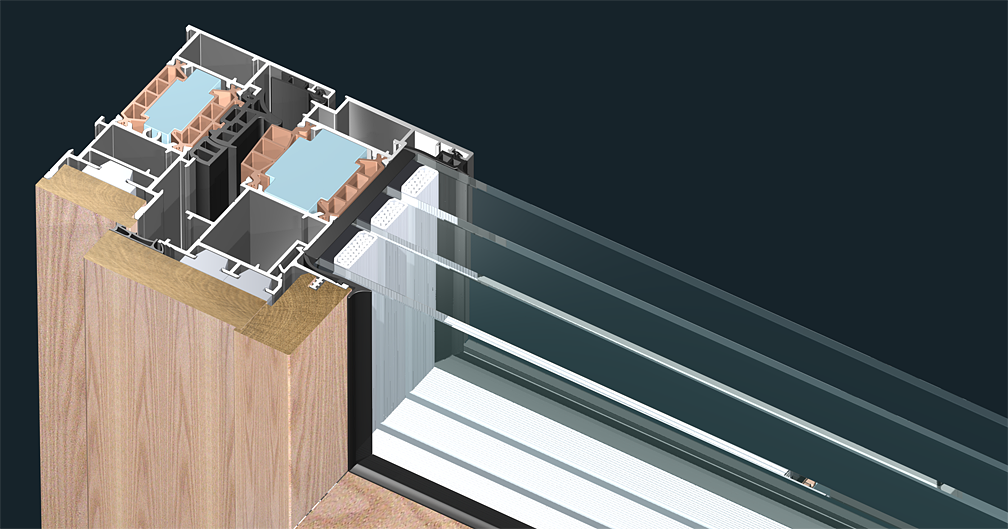

   WOODAL - PH-BASIS-A

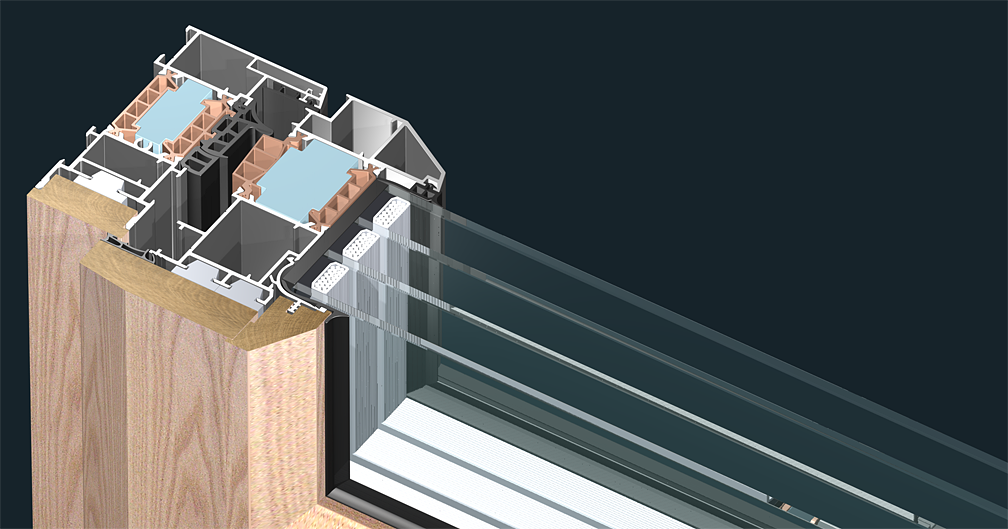

   WOODAL - PH-CLASSIC-B

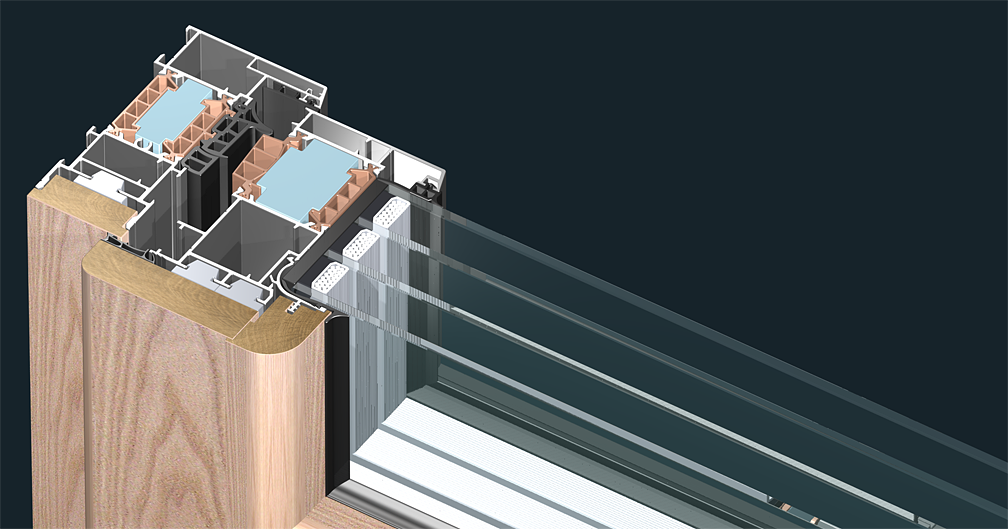

   WOODAL - PH-COMBI-C

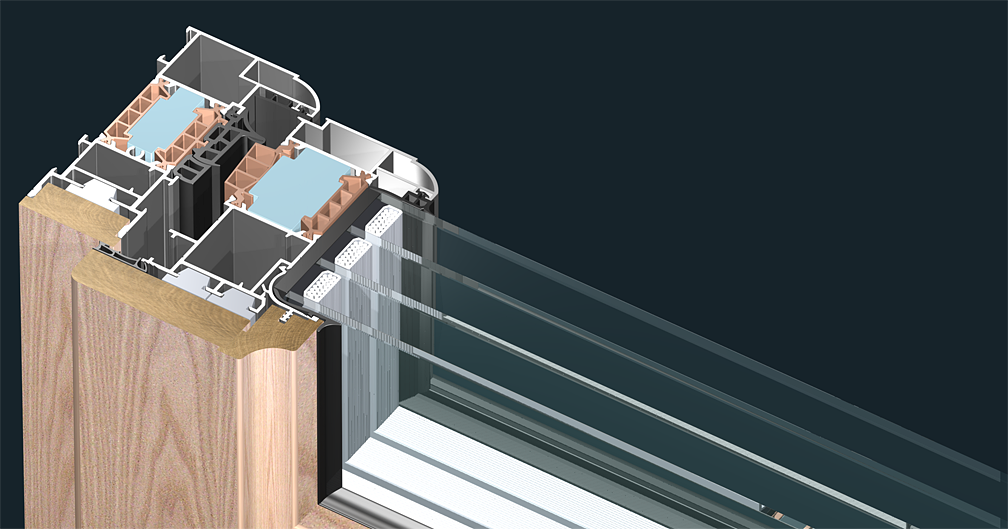

   WOODAL - PH-REFINED-D

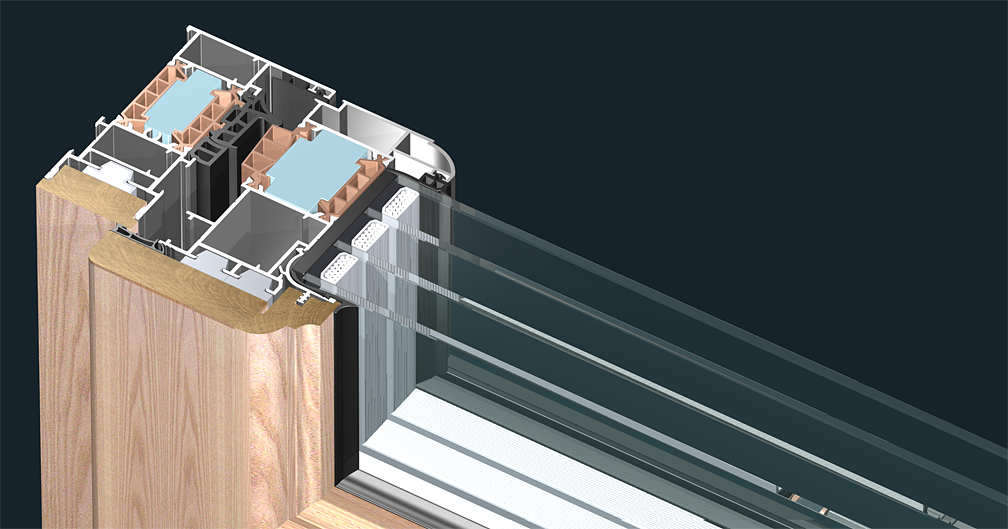

   WOODAL - PH-STRICT-E

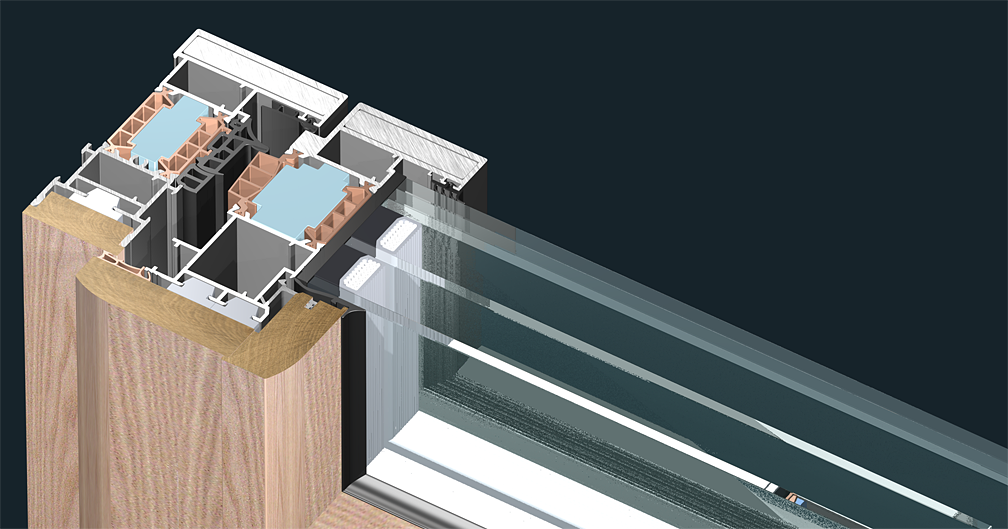

   WOODAL - PH-ANTIVANDAL-G

Table 5.

  TECHNICAL   CHARACTERISTICS

OF AN INNOVATIVE   PROFILE SYSTEM  WOODAL - PH

Thickness of profiles WOODAL - PH

123 - 135 мм

Insulating glass thickness

65 - 80 мм

Recommended formula for double-glazed windows

4+16Ar+4i+16Ar+4i+16Ar+4i

Warm remote glass frames

TGI-Spacer, Ѱ_g=0.051 W/m²K

Resistance to heat transfer of insulating glass, R_og

1.70 m²°C/W

Resistance to the heat transfer of the system, R_of

0.85-0.92 m²°C/W

Resistance to heat transfer window, area 2m²,in accordance with EN ISO 10077-2:2003-12, R_ow

1.4-1.45 m²°C/W

Soundproofing

34 Дб

Thermal conductivity of a polyamide thermal bridge
Technoform Bautec

0.300 W/mK

Number of variants of the external shape
of aluminum profiles

6 options

Number of variants of internal shape
of wooden profiles

6 options

Colors from the outside

Any color RAL or painting
under the tree

Colors from the inside

Without restrictions on the selection
of the color of wood

Breeds of wood

Oak, Meranti, Ash
